mäder – Pneumatic Toggle Press

The mäder – Pneumatic Toggle Press has low energy consumption. This makes them a cost-effective and particularly efficient means of production, both in terms of acquisition and in the long term. The toggle technology offers an optimum transmission ratio for powerful forces at the stroke end combined with the low consumption of compressed air.

The low energy consumption of pneumatic toggle presses by mäder makes them a cost-effective and particularly efficient means of production, both in terms of acquisition and in the long term. The toggle technology offers an optimum transmission ratio for powerful forces at the stroke end combined with the low consumption of compressed air.

Particular advantages are the factory preset pressure point and the virtually maintenance-free, double-acting cylinder. The angular gear drive enables the height of the press head to be easily adjusted. The side-mounted measuring strip enables the fast reproduction of settings when changing tools.

mäder also offers variants of the pneumatic toggle press with XL throat depth – ideal for processing large and bulky parts.

Type: APK

ModelCapacityStrokeThroat
APK 2 L5,00 kN35 mm80 mm
APK 3 L10,00 kN40 mm100 mm
APK 4 L24,00 kN40 mm130 mm
APK 5 L32,00 kN40 mm130 mm
APK 6 L60,00 kN40 mm150 mm

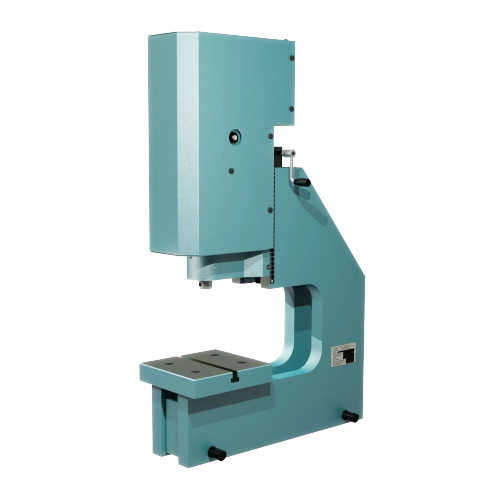

Type: XL-APK

ModelCapacityStrokeThroat
XL-APK 4 L24,00 kN40 mm300 mm
XL-APK 5 L32,00 kN40 mm300 mm
XL-APK 6 L60,00 kN40 mm300 mm
The low energy consumption of pneumatic toggle presses by mäder makes them a cost-effective and particularly efficient means of production, both in terms of acquisition and in the long term. The toggle technology offers an optimum transmission ratio for powerful forces at the stroke end combined with the low consumption of compressed air.

Particular advantages are the factory preset pressure point and the virtually maintenance-free, double-acting cylinder. The angular gear drive enables the height of the press head to be easily adjusted. The side-mounted measuring strip enables the fast reproduction of settings when changing tools.

mäder also offers variants of the pneumatic toggle press with XL throat depth – ideal for processing large and bulky parts.

Type: VKL

ModelCapacityStrokeThroat
VKL 0500-35-805,00 kN35 mm80 mm
VKL 1000-40-10010,00 kN40 mm100 mm
VKL 2400-40-13024,00 kN40 mm130 mm
 VKL 3200-40-13032,00 kN40 mm130 mm
VKL 6000-40-1560,00 kN40 mm150 mm

Type: XL-VKL

ModelCapacityStrokeThroat
XL-VKL 2400-40-30024,00 kN40 mm300 mm
XL-VKL 3200-40-30032,00 kN40 mm300 mm
XL-VKL 6000-40-30060,00 kN40 mm300 mm

Type: KP

ModelCapacityStrokeThroat
KP 3.1 N35,00 kN27 mm112 mm
KP 3.1 W35,00 kN27 mm275 mm

this is to serve as a sub heading divider so that I can improve the readability score for this page

Particular advantages are the factory preset pressure point and the virtually maintenance-free, double-acting cylinder. The angular gear drive enables the height of the press head to be easily adjusted. The side-mounted measuring strip enables the fast reproduction of settings when changing tools.

mäder also offers variants of the pneumatic toggle press with XL throat depth – ideal for processing large and bulky parts.
